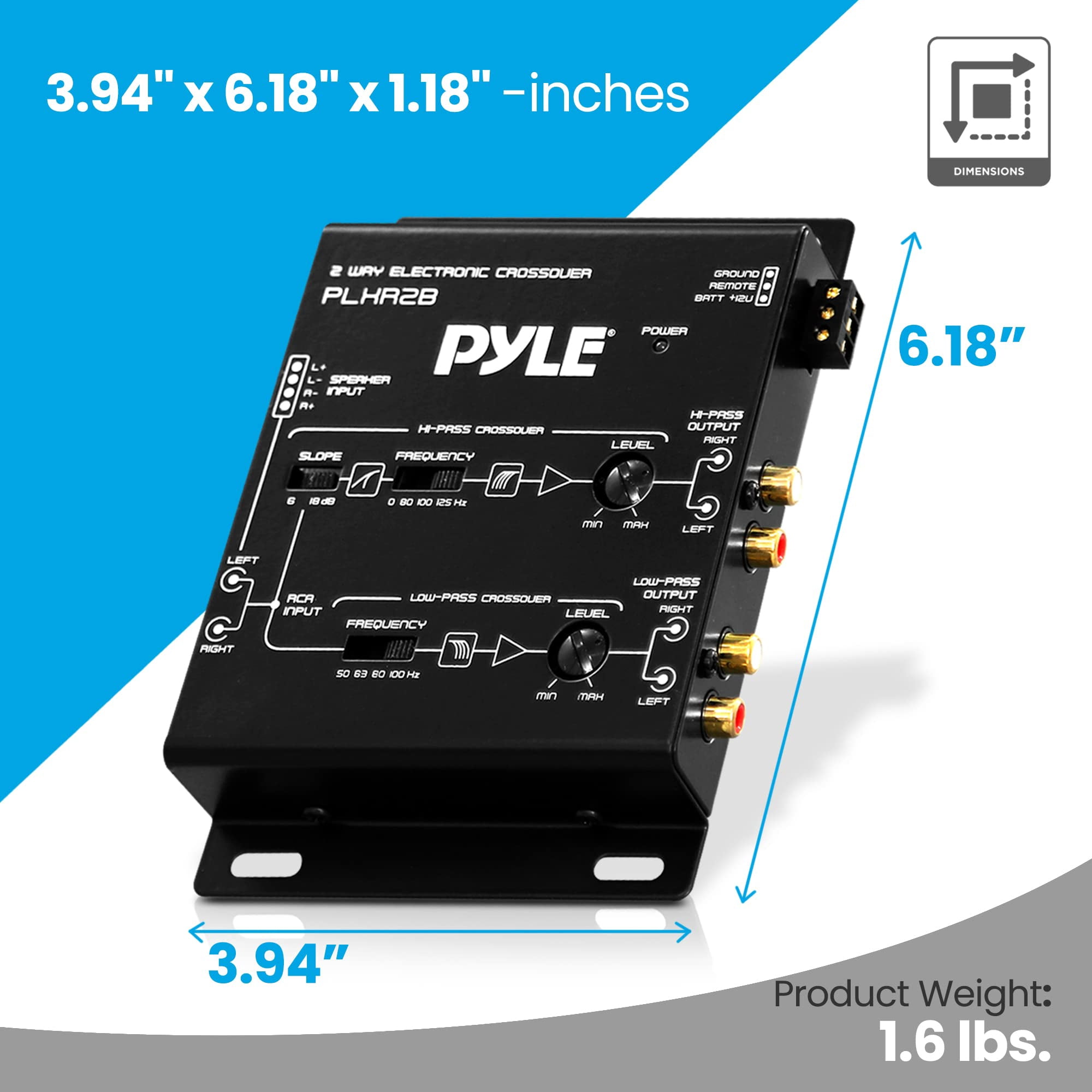

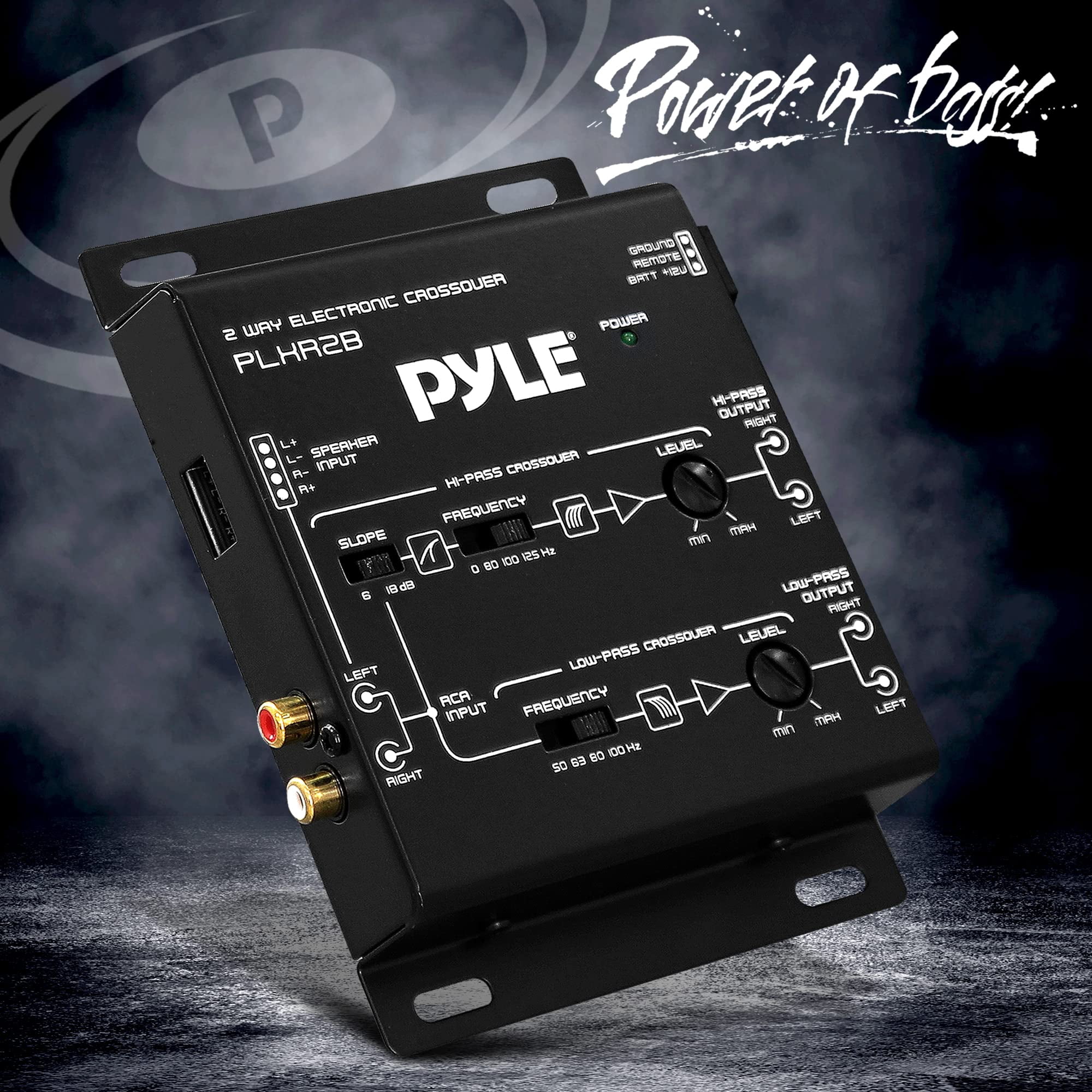

Pyle 2-Way Electronic Crossover Network Independent HighPass LowPass Controls 4-Channel RCA Outputs
☆☆☆☆☆
reviews
US$13.48
Price when purchased online
Free shipping
Free 30-day returns
We aim to show you accurate product information. Manufacturers, suppliers and others provide what you see here.
Product details
| Management number | 252730820 | Release Date | 2026/10/01 | List Price | US$13.48 | Model Number | 252730820 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
2-Way Electronic Crossover Network - Independent High-Pass/Low-Pass Output Level Controls
Pyle 2-Way Electronic Crossover Network Independent HighPass LowPass Controls 4-Channel RCA Outputs

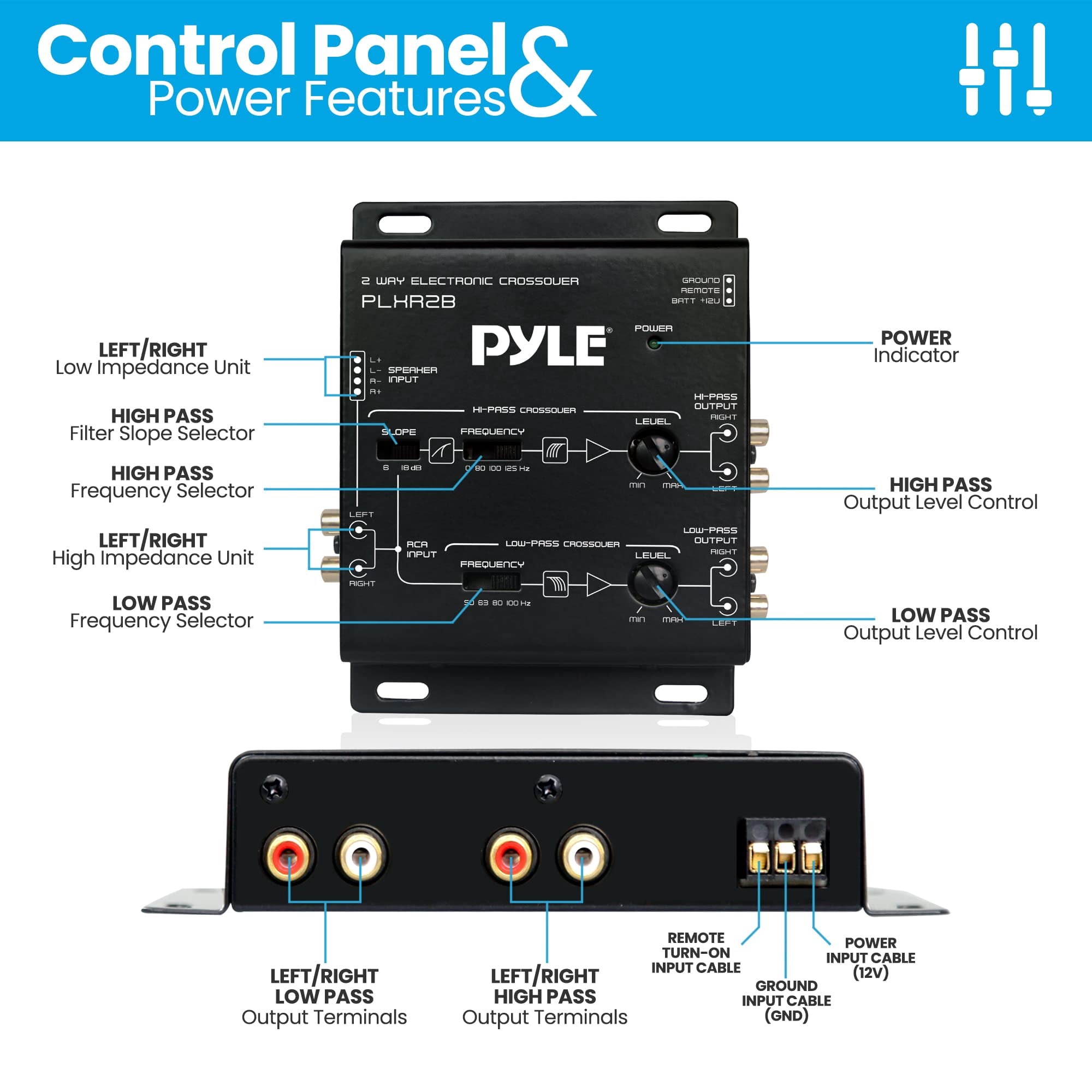

- Compact size for easy installation
- High/Low impedance input for versatile connectivity
- Independent high-pass and low-pass output level controls
- Special crossover slope design for improved audio performance
- 4-channel RCA outputs for multiple connections
- 2-channel RCA inputs for easy integration
- Power on LED indicator for operational status
- Hi-pass crossover settings: Full, 80, 100, 120 Hz
- Low-pass crossover settings: 50, 63, 80, 100 Hz
- Low pass: 18dB/oct (3rd order Butterworth)
- High pass: 6dB or 18dB/oct (3rd order Butterworth)
- Distortion: 0.05% THD at 1V output level
- S/N ratio: 110dB for clear sound
- Output voltage: 6V max for powerful performance
- Separation: >60dB for enhanced audio clarity
- Frequency response: 10 Hz to 50 kHz for a wide range of s
| Channels | 2 |
|---|---|
| Crossover type | Stereo 2-Way |
| Crossover slope | 18 dB |
| In/Out type | RCA |
| Input/output quantity | 4 |
| Freq range | 10Hz - 50KHz |
| Is powered | Y |
| Brand | Pyle |
| Model | PLXR2B |
| Features | LED Indicator |
| Signal-to-noise ratio | 110 |
| Connection | RCA |
| Rack size | 2U |
| Material | Metal |
| Color | Black |
| Inputs/Outputs | RCA |
| Has written warranty | No |
| Volts | 15 V |
| Assembled product weight | 1.32 lb |
| Count | 1 |
